FILTER FRAME SYSTEMS
Möller operates 29 extrusion lines at their headquarters in Eversberg /Germany, producing among other things high-quality plastic profiles for the air filter industry.
We have an attractive range of products and offer our customers an excellent delivery performance, even with individual special sizes. We are partners of customers on every continent in the world.
Möller stands for quality – made in Germany.
SAFE AND FAST ASSEMBLY
- fast assembly by variable click system
- fixation of the corners without glueing
- safe pin-connection
SUSTAINABILITY
- use of reclaimed materials/recyclable
- free from halogens, CFCs, silicones
- and non-ferrous heavy metals
ADVANTAGES
We offer filter frame systems for a wide range of applications. Our products are made of high impact resistant PS or ABS. That makes them recyclable, landfillable and fully incinerable – protecting the environment is important to us.
Due to the design of our profiles and the variable click system, we offer stability that is convincing.
STABILITY THAT CONVINCES
- double wall hollow chamber profiles
- snap-in click system
- production of high impact resistant PS or ABS
TECHNICAL DATA/ CHARACTERISTICS
- fire classification F2 according to DIN 53438-2
- long-term temperature from – 20 °C up to + 70 °C
- resistant to dampness
Compact filter
available with 25 mm (1“) header
- Very high stability
- Easy and fast assembly by the click system
- No welding necessary
- Carrying handles avoid damages to the filter media
- Easily and safely stackable
- Has a self-contained mounting
- Device for the media
- Low weight thanks to the hollow chamber profile
- Grooves in the frame ensure a better adhesion
- Möller 3V filter is free from leakage
carrying handles
self-contained mounting device for filter packs
stackable
available with 20 mm (3/4“) and 25 mm (1“) header
- Very high stability
- Easy and fast assembly by the click system
- No welding necessary
- Carrying handles avoid damages to the filter media
- Easily and safely stackable
- Has a self-contained mounting device for the media
- Low weight thanks to the hollow chamber profile
- Grooves in the frame ensure a better adhesion
- Möller 4V filter is free from leakage
carrying handles
self-contained mounting device for filter packs
stackable
for high temperature applications
- Temperature resistant up to max. 120 °C
- Fire classification F1 according to DIN 53438-3
- Color: grey
Standard sizes for 4V compact filter HT
available with 20 mm (3/4“) and 25 mm (1“) header
Panel filter
CORNERS
Reduction for two corners
= 36 mm
Filter size
= length of profile + 36 mm
DRILLING TEMPLATE:
Möller 45 mm drilling template to drill the connection holes for customized sizes.
CORNERS:
Reduction for two corners
= 44 mm
Filter size
= length of profile + 44 mm
DRILLING TEMPLATE:
Möller 48 mm drilling template to drill the connection holes for customized sizes.
CORNERS:
Reduction for two corners
= 44 mm
Filter size
= length of profile + 44 mm
DRILLING TEMPLATE:
Möller 78 mm drilling template to drill the connection holes for customized sizes.
CORNERS:
Reduction for two corners
= 84 mm
Filter size
= length of profile + 84 mm
DRILLING TEMPLATE:
Möller 78 mm drilling template to drill the connection holes for customized sizes.
CORNERS:
Reduction for two corners
= 44 mm
Filter size
= length of profile + 44 mm
DRILLING TEMPLATE:
Möller 96 mm drilling template to drill the connection holes for customized sizes.
CORNERS:
Reduction for two corners
= 76 mm
Frame size
= length of profile + 76 mm
DRILLING TEMPLATE:
3000 mm pofile for customised sizes.
Möller 96 mm drilling template to drill the connection holes
CORNERS:
Reduction for two
= 69 mm
Filter size
= length of profile + 69 mm
DRILLING TEMPLATE:
Möller 100 mm drilling template to drill the connection holes for customized sizes.
CORNERS:
Reduction for two corners
= 44 mm
Filter size
= length of profile + 44 mm
DRILLING TEMPLATE:
Möller 150 mm drilling template to drill the connection holes for customized sizes.

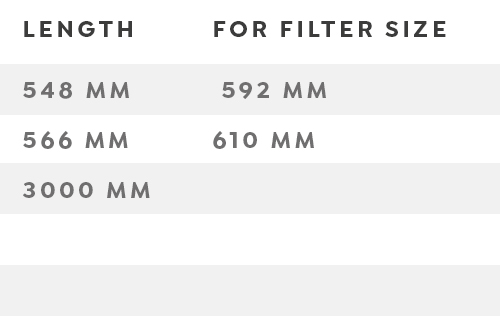

CORNERS:
Reduction for two corners
= 84 mm
Filter size
= length of profile + 84 mm
DRILLING TEMPLATE:
Möller 150 mm drilling template to drill the connection holes for customized sizes.
- connection profile / corner without snap-in holes and pins
- very high stability due to thick-walled frame profiles
- corners are not visible after assembly
- fast and safe assembly
one-piece connector
The corner connector fits completely inside the double wall cavitiy, making it invisible in the assembled frame.
Pocket filter
CORNERS:
Reduction for two corners
= 40 mm
Filter size
= length of profile + 40 mm
- Frame profile, 3-fold punched
- Corner with 3 pins
- Clips profile
- Clamping profile, with angular cutting
- Clamping profile, with angular cutting, punched for clips profile
- Frame profile, 3-fold punched
- Corner with 3 pins
- Half round profile
- Cover clips profile for half round profile
- Clamping profile, with angular cutting
- Clamping profile, with angular cutting, punched for half round profile
Drilling template
Möller drilling templates to drill connection holes for customized sizes
Punching Unit
20 mm and 25 mm punching unit to punch the connection holes
Pocket holding device
Closure tool
Closure tool for the assembly of the clips profile Co-Ex
